PRODUCTS
Vertical Autoclave

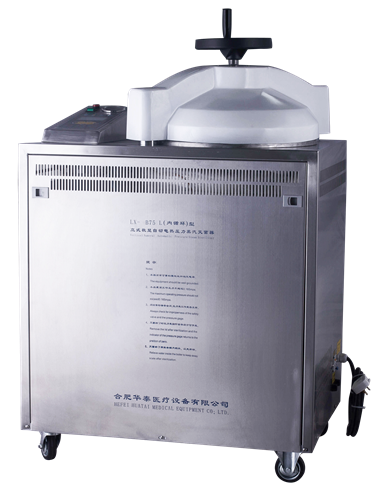

LX-B Internal Cycle Vertical Autoclave
Full SUS 304 stainless steel material
PID microcomputer control, LCD dynamic display temperature and time
Full automatic waterflood, heating, sterilization, steam release and drying
Hand wheel quick open door
Double safety interlocking
Steam internal cycle
Automatic release when overpressure
Water shortage and over heating protection
Tempered glass anti-scald protection
Four shortcut button for appliance, dressing, packing instrument and liquid
|
TECHNICAL DATA MODEL |
LX-B50L (Internal cycle) |
LX-B75L (Internal cycle) |
LX-B100L (Internal cycle) |
|
Volume |
50L |
75L |
100L |
|
Max Working Temperature |
134℃ |
134℃ |
134℃ |
|
Max Working Pressure |
0.22Mpa |
0.22Mpa |
0.22Mpa |
|
Time Range |
0-9999min |
0-9999min |
0-9999min |
|
Temperature Range |
100℃-134℃ |
100℃-134℃ |
100℃-134℃ |
|
Sterilization Chamber |
Φ320*530mm |
Φ400*470mm |
Φ400*580mm |
|
Power |
AC220V/50Hz/3.5KW |
AC220V/50Hz/3.5KW |
AC220V/50Hz/4.0KW |
|
Drying Temperature |
60-110℃ |
60-110℃ |
60-110℃ |
